HPC 22″ Dual-Step Propane Gas H-Burner With 120 VAC Electronic Ignition – DBOF22EI-LP-120VAC
Making Evenings Unforgettable
HPC’s new line of outdoor gas fireplace burner systems is made specifically for converting any outdoor wood fireplace to gas. Ideal for retrofit or new construction, our new linear burner, and H-burner systems make it easy to take any backyard up a notch. Up until now there was a limited choice for outdoor gas fireplace burners that offered reliable starts with larger hotter fires to meet the scale of large outdoor fireplaces. This burner is powered by household electrical current and the control box can be mounted outside of the fire box enclosure for easy access and no visibility inside the fireplace. The burner is made of 304 Stainless Steel and them powder coated black to look like a real wood grate set. The H-Burner design produces a large full flame and can be used with glass, lava rock or log sets for a real wood fire effect. The ignition system is easy to use with a hot surface ignition that produces an orange glow and then will light the on demand gas pilot system. The dual step design allows the burner to be raised for a log grate style effect or lowered for glass media.
Sequence of Operation:
1. The igniter will be powered (glow red) for five seconds before pilot valve opens.
2. The igniter will only be powered the initial 15 seconds of the 30-second pilot cycle. This sequence will repeat up to 15 times (approximately 15 minutes) before going into lockout. To reset, turn “OFF” power then back “ON” again.
3. Pilot flame will ignite and warm thermocouple; it may take 30 seconds at times for thermocouple to get hot. If thermocouple is not hot in 60 seconds, system will shut down. If this occurs, go back to Step 1.
4. Once thermocouple is hot, main valve will open allowing main burner to ignite.
5. If pilot flame is blown out at any time, system will shut down, and then automatically restart (Step 1).
Features:
Size: 22 Inches
Color: Black
120 VAC
22″ burner
H-burner design
Rear leg elevated
Lifetime warranty
Electronic ignition
Powder coated black
Integrated weep holes
Fits a 36″ outdoor fireplace
Your choice of natural gas or propane
Rear height adjustable for flame presence flexibility
Additional information
Weight
40 lbs
Brands
HPC Fire
Gas Type
Liquid Propane (LP)
Fireplace Burner BTUs
90,000 BTUs
Fireplace Burner Style
H-Burner
Fireplace Burner Size
21"
Fireplace Pan Size
22" x 10"
Fireplace Ignition
120V- Hot Surface Ignition
Fireplace Construction Materials
304 Stainless Steel w/Powder Coated Finish
Fire Pit Install Specs
Gas
• Only use the gas/fuel type specified for this fireplace insert, refer to the label on the EI Control Panel. Never use an alternative fuel to include biofuel, ethanol, lighter fluid or any other fuel.
• Gas pressure and type should be checked prior to use and installation.
– Natural Gas Fire Pit: Supply Pressure: Minimum: 6.0 inches W.C.; Maximum: 7.0 inches W.C.
– LP Gas: Supply Pressure: Minimum: 8.0 inches W.C.; Maximum: 11.0 inches W.C.
Electrical
• Verify correct 120 VAC – 1 amp or 24 VAC – 4 amp power supply. Only use the type specified for this fireplace insert. Refer to the label on the EI Control Panel. All electronic applications should utilize a GFCI-protected circuit.
– If removing power cord plug and hard wiring within junction box, use only a certified Electrician and must follow the National Electrical Code (NEC), NFPA 70 and all local codes.
Clearances around Fire Pit

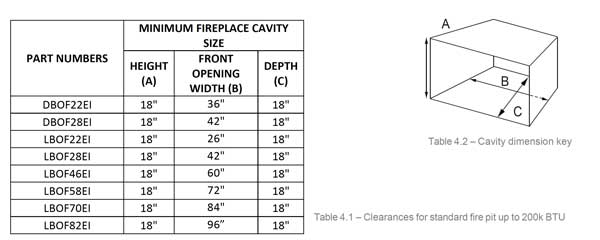

It’s important to review the clearance requirements below for any type of overhead structure to ensure that the distances are met. Tables 4.1 and 4.2.
Please call or email us to confirm the shipping time. 410-696-7300 or email us [email protected]
We will provide shipping information once the product has left our warehouse or manufacture.
If item is delayed we will contact you and let you know when you can expect your shipment.
30 Day No Hassle Returns
Returns of all new, unused and un-assembled items in their original packaging, and we’ll give you a full refund. We do subtract the cost of the original shipping & return shipping.
Warranty
Warranty
Hearth Products Controls Co. (HPC) warrants fire pits against manufacturing defects that prevent safe and correct function as follows:
1) Stainless Steel Fire Pit and Outdoor Fireplace Burners -Lifetime Warranty
Limited Warranty:
2) Electronics, Gas Valve: Commercial-1 year; Residential-3 year.
3) Pilot Assembly: Commercial-1 year; Residential-2 year.
4) Stainless Steel Pan, Valve Box: Commercial-1 year; Residential-5 years
Warranty commences from the date of original sale / shipment from HPC FOB Dayton, Ohio. This warranty is for parts and in-house (HPC) labor. The defective product must be sent back to HPC with a Return Merchandise Authorization (RMA) issued by HPC for that specific product and any other additional information for the nature of the defect or warranty claim. The warranty does not cover items that have been damaged by overheating, modification, abuse, or improper storage. Also any labor involving installation or maintenance with the unit is not covered. This warranty excludes claims for consequential, indirect-collateral expenses arising from product defects or warranty recovery.
